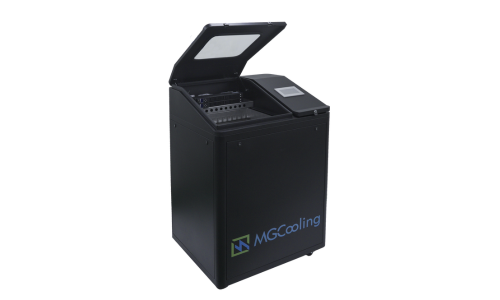

Immersion cooling system
- High efficiency, low volatility of dielectric fluid/mineral oil
- Antipyretic high wattage in small spaces
- Energy saving, PUE can be below 1.1
- Intelligent control system, 7″ touch LCD screen
- Integrated control system for remote monitoring
- Maximum 3kW heat load cooling capacity per immersion tank
- Highly flexible configuration, immersion tank can be customized
Product description
| M/N | IC003 |
| Size(H x W x D) | 132.6 x 65 x 66 cm |
| Weight | Net: 80kg，TTL: 225kg |
| Coolent | MGC Coolant TDF145 |
| Cooling capacity | 3kW @ flow rate=32LPM, △T=16°C* |
| Pump | glandless pump |
| Max. flow rate in tank | 70 L |
| LCD Monitor | 7″ LCD TP |
| Coolent temperature rang | Into the water temperature 35~50°C；Out of water temperature 45~55°C |
| Pipe connection | ISO7241-B Stainless Steel Flange and QC |
| Noise | < 55 dBA (in 3m) |
| Dew point control | YES |
| Web communication | TCP/IP |
| Modbus Communication | RS485 RTU |
| Power Consumption | 760W |
| Power input | Single phase 220V,50/60Hz |
